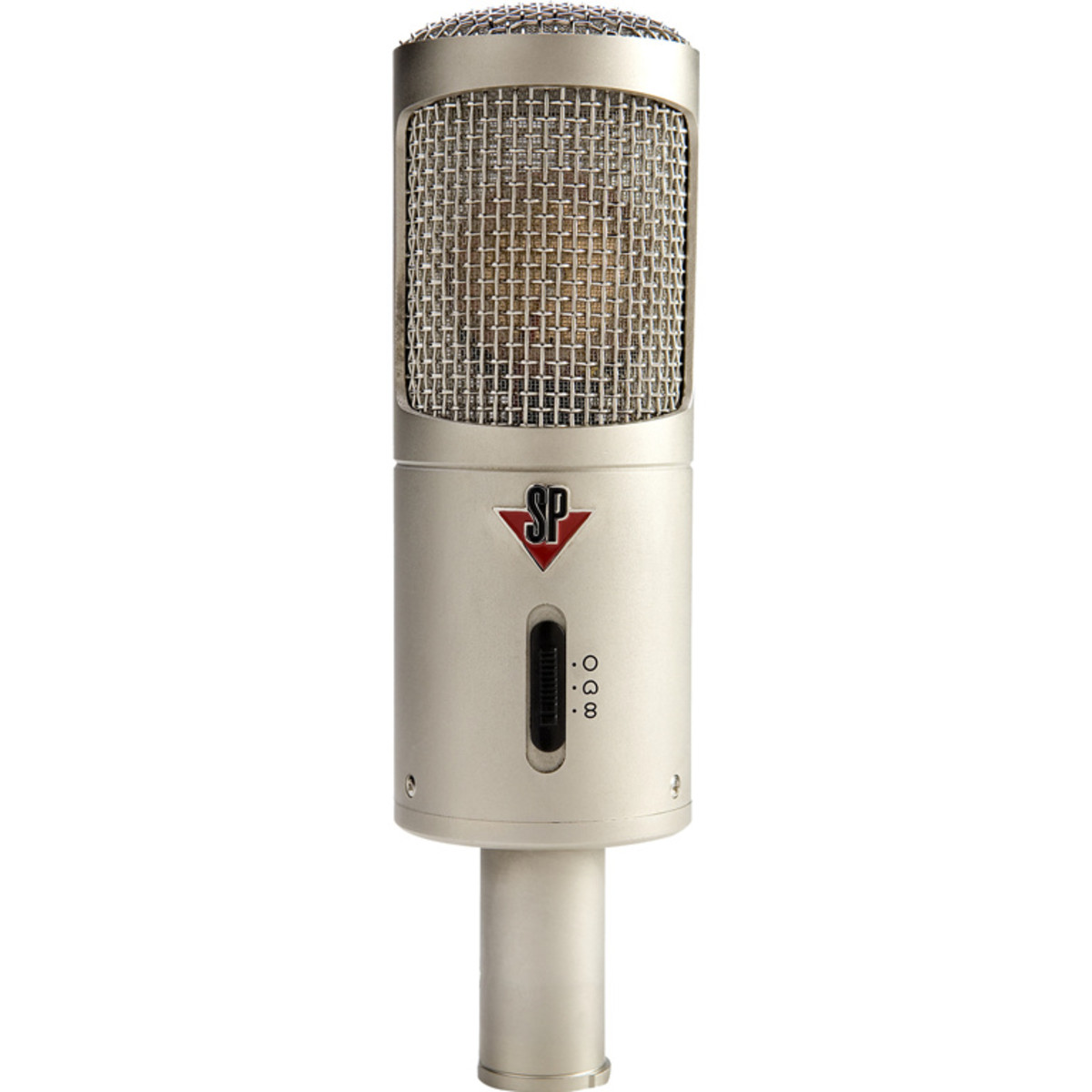

OFF LINE DO NOT SELL Studio Projects B3 Condenser Microphone

Fullständig Beskrivning

Featuring upgraded electronics and a sleek new look, the new SP microphone product line is the result of 5 years of research and development by Brent Casey, veteran microphone designer and Vice President of Engineering of Studio Projects. The new electronics allow for better signal to noise ratio, as well as greater dynamic range.

The new Studio Projects B3 is the ultimate in large diaphragm condenser microphones at this price anywhere. This microphone has all the technical refinements to be an enduring classic . With features you would expect in a world class microphone, the B3 offer's three recording pattern positions (cardioid, omni and a true figure eight) with pad and Hi-Pass filter.

Equipped with a true 1" 3 um gold sputtered dual gold large diaphragm in a pressure gradient transducer capsule, the B3 will ensure the finest quality of recordings while offering linear response and a classic deep rich sound. The B3 can be connected to any external microphone preamplifier or mixing console which provides 48 volt phantom power or via any 48 volt external power supply.

The B3 will compete favorably with microphones costing substantially more. If your looking for that traditional "German" sounding pedigree for your studio, but simply can't or won't spend the big 'dollars' it takes to get it, then the Studio Projects B3 it the microphone for you.

Applications

� A superb vocal microphone with warm transparent character

� Great for overhead choirs, strings, pianos & percussion

� Great for production, broadcast, and voice over work

� Perfect for the professional and home project studio

� A quality vocal mic suitable for all vocal styles

Features

� Pressure-Gradient Transducer, Dual 1" 3 um mylar capsule

� Selectable patterns (omni, cardioid, figure eight)

� High Pass Filter

� 10db Pad

Included Accessories

� Zippered Bag

� Foam Wind Screen

� Shockmount

B3 Specifications

Type: 1 inch large dual diaphragm 3 micron FET condenser microphone

Polar pattern: cardioid/ Omni-directional/figure 8.

Frequency response: 20~20000Hz.

Sensitivity: 14/16/18mV/Pa(Omni./Cardioid/Figure 8)(-37/-36/-35dB @1000Hz)

Output impedance:

1000 Ohm.

Maximum SPL: 132/142dB SPL for 1% THD @1000Hz(0dB/-10dB pad, 0dB SPL=0.00002Pa).

Noise Level:

14dB-A (Cardioid).

S/N:

80 dB.

Power requirement: 48 +/- 4V.

Current consumption:
